Standard CBN Inserts

HOME>>Products>>Standard CBN Inserts
Coated PCBN inserts

Coated PCBN inserts

Coated PCBN inserts use CVD (vapor deposition method) to coat a layer of wear-resistant and high-temperature-resistant film on the surface of the inserts, thereby improving tool wear resistance and heat resistance. In response to t
Send Inquiry

Product Description

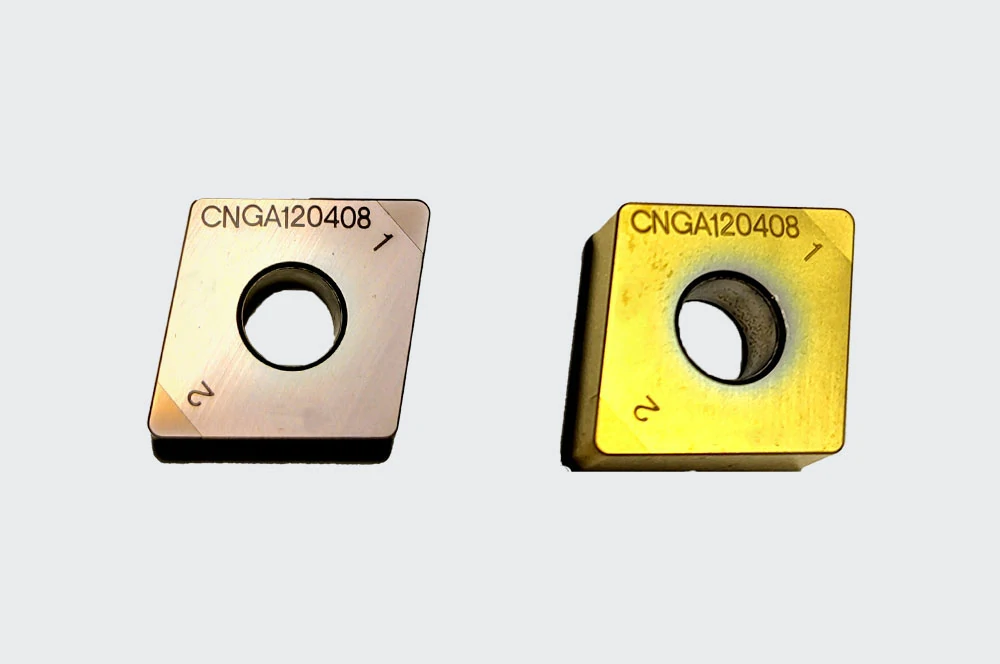

Coated PCBN inserts use CVD (vapor deposition method) to coat a layer of wear-resistant and high-temperature-resistant film on the surface of the inserts, thereby improving tool wear resistance and heat resistance.




  • In response to the challenges of modern tools, SCBN TOOLS has developed a unique tool coating system. Using a multi-layer coating process, making PVD coatings are extremely hard, but most manufacturers' coatings are so hard that they fall off at the cutting edge at the beginning of cutting. SCBN TOOLS engineers designed a layer of stress-absorbing film under the thick high-hardness film, which greatly increases the stability of the hard film and increases the tool life by 2 to 5 times, which is a pioneering work in the coating industry. The hard coating of the cutting edge has no micro-chipping, and the surface of the cut product is brighter, which meets the requirements of high-precision cutting.


coating PCBN.webp


  • Under high-speed dry cutting conditions, facing a large number of high temperature problems, SCBN TOOLS designs a high temperature resistant film on the outermost layer, so that the cutting heat is excluded from the cutting edge of the tool, and most of the heat is taken away by the chips, thereby effectively increasing the tool stability.


  • For the cutting of high hardness steel materials, the use of SCBN TOOLS new process coating can effectively increase the tool life. At present, our PCBN series inserts provide coatings for all series.


Factory Image

factory iamge.webp


SCBN TOOLS, formerly known as China Henan New Materials Research Institute, has exclusive advantages in cubic boron nitride materials. We are self-sufficient from raw materials to cutting tools production, and can provide you the most suitable cutting tool solutions.

If you do not find the information you required or would like to know more details, please contact our technical staff.

We are a CBN insert manufacturer with 15 years of experience in tool related business.

Please contact us directly. We will reply to you as soon as possible!
