Solid CBN Inserts

Solid CBN Inserts

What is a Solid CBN Inserts?Solid CBN Insert is the abbreviation of the overall polycrystalline cubic boron nitride blade. It is a kind of blade made of cubic boron nitride micro-powder through high temperature and high pressure polycrystallization. It belongs to the machine-clamped Insert, wh
Send Inquiry

Product Description

What is a Solid CBN Inserts?



  • Solid CBN Insert is the abbreviation of the overall polycrystalline cubic boron nitride blade. It is a kind of blade made of cubic boron nitride micro-powder through high temperature and high pressure polycrystallization. It belongs to the machine-clamped Insert, which is different from the toolholder used for ordinary carbide inserts and PCBN inserts, and needs to be customized. According to different processing conditions, intermediate positioning holes, positioning pits, and wiper blades can also be customized.



  • The application fields of Solid CBN inserts are as follows:

  1. The processing of wear-resistant castings, the processing materials are: high chromium cast iron, chilled cast iron, nickel hard cast iron, high manganese steel, etc.;

    Typical parts are: industrial pumps, rolls, mill walls, liners, grinding rolls;

  2. For the processing of ordinary gray cast iron workpieces, the processing materials are mainly gray cast iron;

  3. Typical parts are: gray cast iron brake disc, brake drum, engine block, cylinder liner, air conditioner compressor, etc.;

  4. Rough turning and intermittent cutting of large and high-hardness steel parts. Typical parts include gear end faces and wind power bearing grooving.

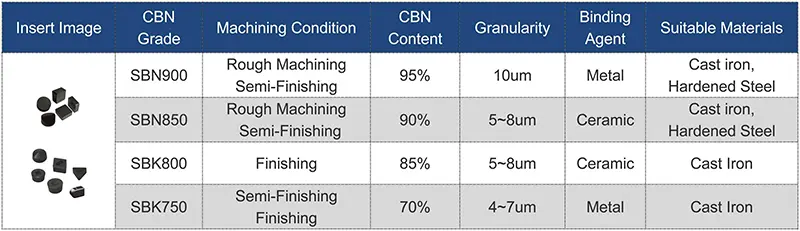

  • The tool grades of SCBN Tools Solid CBN inserts are as follows:


SCBN Tools-Solid CBN Inserts.jpg

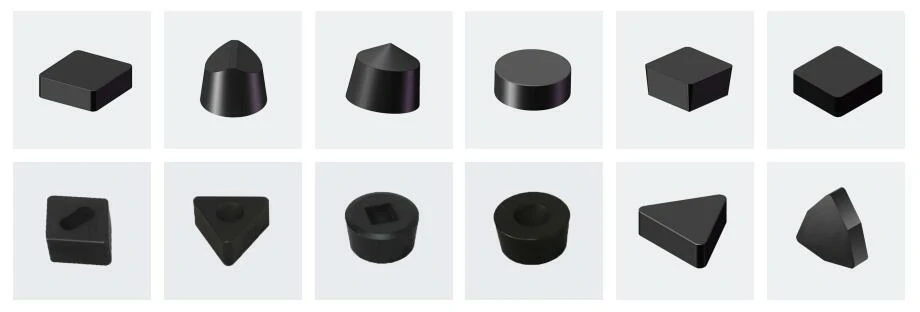

  • We can offer the following type solid cbn inserts:

Solid CBN.jpg

  1. 90°Square CBN: SNMN0903, SNMN0904, SNMN1204, SNMN1207, SNMN1507, SNMN2010 (Also called SNGN) SCGN0903, SCGN0904

  2. 80° C-Type Rhombus Shaped　CBN: CNMN0904，CNMN1204，CNMN1207（Also called CNGN）

  3. 55° D-Type Rhombus Shaped: DNMN1104，DNMN1106，DNMN1506（Also Called DNGN）

  4. 60° T-Type Triangle Shaped: TNMN1103, TNMN1604 (Also called TNGN)

  5. 60° W-Type Peach Shaped: WNMN0804 (Also called WNGN)

  6. Round RC-Type: RCMX0604, RCMX0605, RCMX0606, RCMX0907, RCMX1207, RCMX1510, RCMX1910, RCMX2012, Also Called RCGX And V-type Solid CBN.

  7. Round RN-Type: RNMN0604, RNMN0903, RNMN1204, RNMN1207, RNMN1507, RNMN1608, RNMN1907, RNMN2010. (Also Called RNGN)

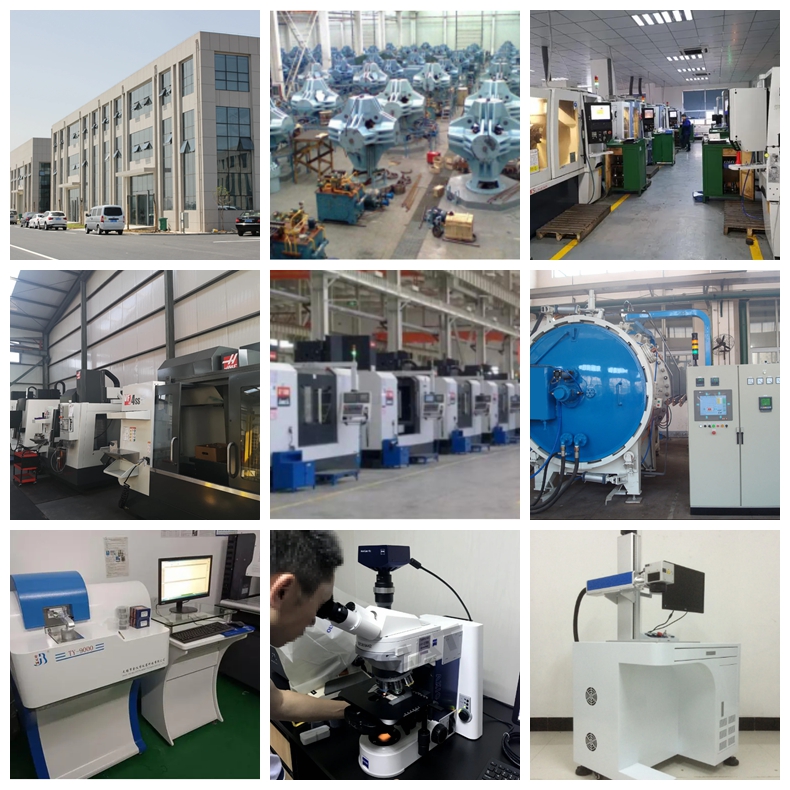

Factory Image

factory iamge.jpg


SCBN TOOLS, formerly known as China Henan New Materials Research Institute, has exclusive advantages in cubic boron nitride materials. We are self-sufficient from raw materials to cutting tools production, and can provide you the most suitable cutting tool solutions.

If you do not find the information you required or would like to know more details, please contact our technical staff.

We are a CBN insert manufacturer with 15 years of experience in tool related business.

Please contact us directly. We will reply to you as soon as possible!

24-hour service Email: [email protected]       Whatsapp：+86 13271567751    +86 17797763465
