VNGA/VNMG Tipped PCBN Inserts

VNGA/VNMG Tipped PCBN Inserts

The Introduction of VNGA tipped PCBN InsertVNGA is an 35-degree diamond-shaped insert, which is made of PCBN composite sheet with excellent performance. It is a composite PCBN insert with a carbide base inlaid with a CBN tip. It is often used for finishing and semi-finishing of cast iron and h
Send Inquiry

Product Description

The Introduction of VNGA tipped PCBN Insert



  • VNGA is an 35-degree diamond-shaped insert, which is made of PCBN composite sheet with excellent performance. It is a composite PCBN insert with a carbide base inlaid with a CBN tip. It is often used for finishing and semi-finishing of cast iron and hardened steel. , is a very commonly used cylindrical end face turning insert, the commonly used material grades are as follows:


SCBN Tools-Tipped PCBN Inserts.webp


  • VNGA series inlaid composite PCBN inserts are very commonly used turning inserts, which can withstand continuous, intermittent and heavy interrupted machining conditions. There are different types of cbn insert materials for cast iron and hardened steel parts, which can fully meet different customer needs.

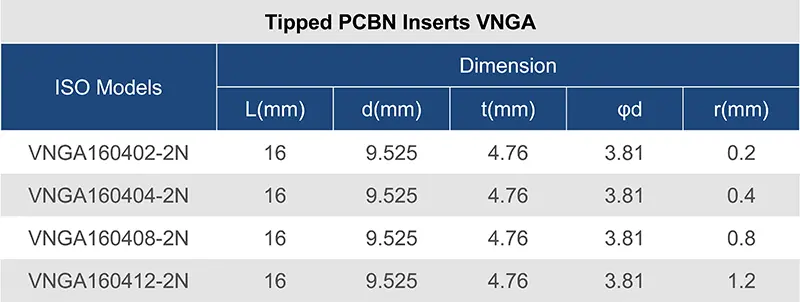

  • VNGA composite PCBN inserts conventional ISO standard type 35 degree diamond inserts, commonly used models are VNGA160404，VNGA160408，VNGA160412 etc. This series of inserts can also be customized by double-sided welding according to customer needs, so that 4 cutting edges, nose radius and cutting edges can be customized.


VNGA -11.webp


  • VNGA composite PCBN inserts are often used for workpiece after hard turning and quenching, such as finishing gear end faces, gear outer circles and gear shafts, etc. The roughness can reach Ra0.4. When batch finishing gray cast iron workpiece, such as brake discs, brake drums , When the engine block is made of composite PCBN inserts, the surface finish is higher, and the efficiency is also greatly improved compared to cemented carbide.


  • When machining hardened steel parts, VNGA composite PCBN inserts can be coated. After coating, the tool life will be increased by 30%-45% compared with uncoated inserts, and the finish will also be improved.



SCBN TOOLS, formerly known as China Henan New Materials Research Institute, has exclusive advantages in cubic boron nitride materials. We are self-sufficient from raw materials to cutting tools production, and can provide you the most suitable cutting tool solutions.

If you do not find the information you required or would like to know more details, please contact our technical staff.

We are a CBN insert manufacturer with 15 years of experience in tool related business.

Please contact us directly. We will reply to you as soon as possible!
