CCGW/CCGT Tipped PCBN Inserts

CCGW/CCGT Tipped PCBN Inserts

The Introduction of Tipped PCBN InsertCCGW is an 80-degree diamond-shaped insert with a 7-degree relief angle. It is made of PCBN composite sheet with excellent performance. It is a composite PCBN insert with a carbide base inlaid with a CBN tip. It is commonly used in finishing and semi-finis
Send Inquiry

Product Description


The Introduction of Tipped PCBN Insert


  • CCGW is an 80-degree diamond-shaped insert with a 7-degree relief angle. It is made of PCBN composite sheet with excellent performance. It is a composite PCBN insert with a carbide base inlaid with a CBN tip. It is commonly used in finishing and semi-finishing cast iron and hardened steel. It is commonly used as boring inserts. Common used material grades are as follows:

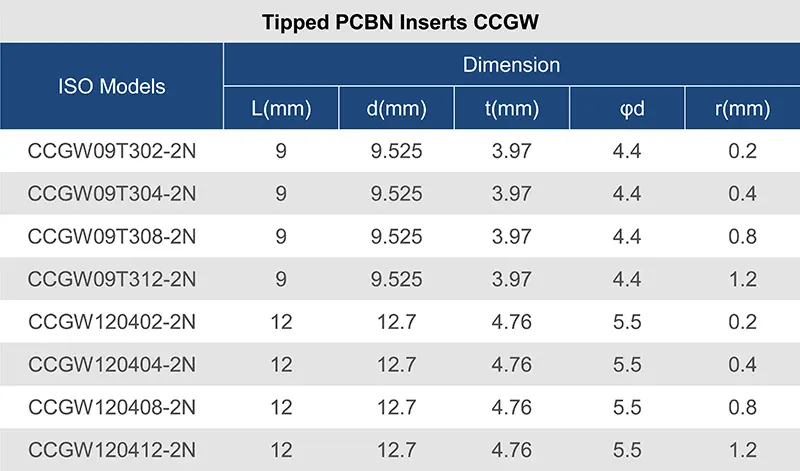

SCBN Tools-Tipped PCBN Inserts.webp


  • CCGW series inlaid composite PCBN inserts are often used as boring inserts, which can withstand continuous, intermittent and heavy interrupted machining conditions. There are different types of insert materials for cast iron and hardened steel parts, which can fully meet different customer needs.


  • CCGW compound PCBN inserts are conventional ISO standard triangular inserts. Commonly used models are CCGW0602, CCGW09T3, CCGW1204, etc. The smallest insert can be CCGW0402. Other non-standard cutting edges, rounded corners and chamfer can be customized.

    When CCGW PCBN used as a boring insert, we can also provide a matching boring tool holder. The CCGW0402 insert can process a hole whose diameter is larger than 6mm, providing convenience for small hole processing. It is no longer necessary to use a welding type turning tool. Adopt Boring CBN inserts is more convenient and efficient.




  • CCGW composite PCBN inserts are often used for finishing and semi-finishing quenched workpiece, such as gear inner holes, gear end faces, gear outer circles and gear shafts, etc., as well as gray cast iron workpiece, such as brake discs, brake drums, engine blocks, etc.


  • When machining hardened steel, CCGW composite PCBN inserts can be coated. After coating, the tool life will be increased by 30%-45% compared with uncoated inserts, and the finish will also be improved.


The Application industry of the Pcbn inserts

  • PCBN Inserts can be widely used various industry, such as break system, transmission system, power system, the typical working component include the following 2 materials workpices:

    Cast Iron components: Brake Disc, Brake Drum, Pulley, cylinder liner, Engine Cylinder Block, Pump, Cast Iron Rolls, ect.

    Hardened Steel Parts: Crushing Cone, Gears, Bearings, ect.




SCBN TOOLS, formerly known as China Henan New Materials Research Institute, has exclusive advantages in cubic boron nitride materials. We are self-sufficient from raw materials to cutting tools production, and can provide you the most suitable cutting tool solutions.

If you do not find the information you required or would like to know more details, please contact our technical staff.

We are a CBN insert manufacturer with 15 years of experience in tool related business.
