DCGW/DCGT Tipped PCBN Inserts

DCGW/DCGT Tipped PCBN Inserts

The Introduction of Tipped PCBN InsertDCGWis an 55-degree diamond-shaped insert with a 7-degree relief angle. It is made of PCBN composite sheet with excellent performance. It is a composite PCBN insert with a carbide base inlaid with a CBN tip. It is commonly used in finishing and semi-
Send Inquiry

Product Description

The Introduction of Tipped PCBN Insert



  • DCGW is an 55-degree diamond-shaped insert with a 7-degree relief angle. It is made of PCBN composite sheet with excellent performance. It is a composite PCBN insert with a carbide base inlaid with a CBN tip. It is commonly used in finishing and semi-finishing cast iron and hardened steel. It is commonly used as boring inserts. Common used material grades are as follows:



SCBN Tools-Tipped PCBN Inserts.webp


  • DCGW series inlaid composite PCBN inserts are often used as boring inserts, which can withstand continuous, intermittent and heavy interrupted machining conditions. There are different types of insert materials for cast iron and hardened steel parts, which can fully meet different customer needs.

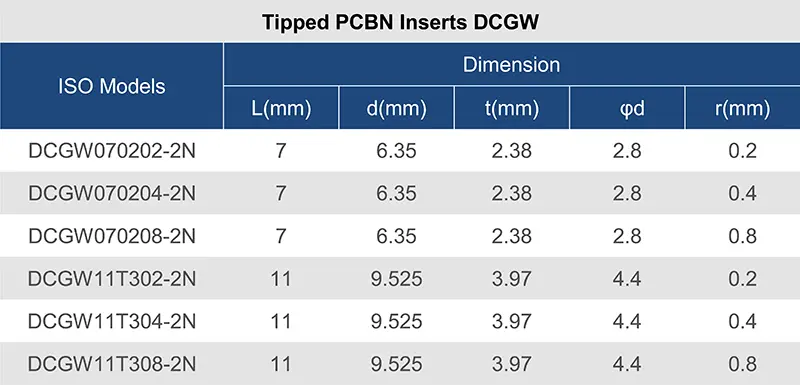

  • DCGW compound PCBN inserts are conventional ISO standard triangular inserts. Commonly used models are DCGW0702，DCGW11T3, etc. Standard cutting edges are 2 tips, and radius can be 02,04,08, common chamfer is S01020, S01025, S01325,ect. Other non-standard cutting edges, radius and chamfer can be customized.


DCGW -11.webp


  • DCGW composite PCBN inserts are often used for finishing and semi-finishing quenched workpiece, such as gear inner holes, gear end faces, gear outer circles and gear shafts, etc., as well as gray cast iron workpiece, such as brake discs, brake drums, engine blocks, etc.


  • When machining hardened steel, DCGW composite PCBN inserts can be coated. After coating, the tool life will be increased by 30%-45% compared with uncoated inserts, and the finish will also be improved.



SCBN TOOLS, formerly known as China Henan New Materials Research Institute, has exclusive advantages in cubic boron nitride materials. We are self-sufficient from raw materials to cutting tools production, and can provide you the most suitable cutting tool solutions.

If you do not find the information you required or would like to know more details, please contact our technical staff.

We are a CBN insert manufacturer with 15 years of experience in tool related business.

Please contact us directly. We will reply to you as soon as possible!
