TNMN/TNGN Solid CBN Inserts

TNMN/TNGN Solid CBN Inserts

The introduction of TNMN CBN insert seriesThe shape of TNMN polycrystalline cubic boron nitrideinsertis a stable equilateral triangle, which is an ISO international standard model, and can also be called TNGN. ThesolidCBN insert TNMN is sintered under high temperature and hig
Send Inquiry

Product Description

The introduction of TNMN CBN insert series


  • The shape of TNMN polycrystalline cubic boron nitride insert is a stable equilateral triangle, which is an ISO international standard model, and can also be called TNGN. The solid CBN insert TNMN is sintered under high temperature and high pressure on the six-sided top, and has excellent heat resistance, wear resistance and chemical stability.

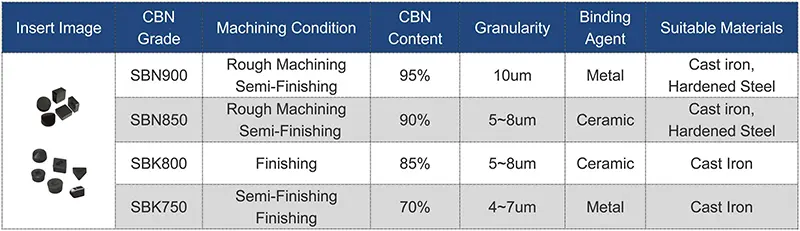

SCBN Tools-Solid CBN Inserts.webp

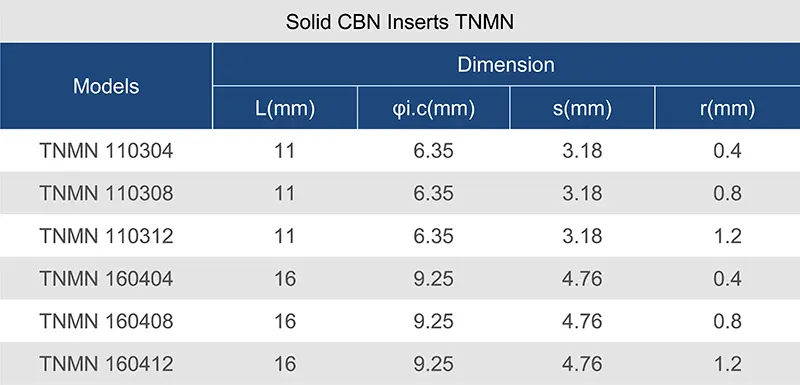

  • Common models of TNMN solid CBN inserts are TNMN1103 and TNMN1604. The nose radius are 02, 0, 08, 12.

    Common chamfers of TNMN solid CBN inserts are T01020, T02020, S01020, S02020, S05020, etc. Other chamfers can be customized.


TNMN 整体CBN刀片型号表-7.webp


  • TNMN solid CBN inserts have excellent cutting performance and are suitable for high-speed dry cutting. They are widely used in the processing of gray cast iron, ductile iron, wear-resistant alloy cast iron and various cast steel and hardened steel materials.

    They are often used for turning gray cast iron brake discs. Gray iron brake drums, boron cast iron cylinder liners, cast iron clutches, cast iron pressure plates, gray cast iron flanges, air conditioner compressors and other typical cast iron parts are also commonly used for machining high hardness cast iron rolls and other parts. It can withstand large cutting depth and large cutting, and can adapt to intermittent cutting. It is better to control the cutting depth within 2/3 of the length of the cutting edge of the insert.


SCBN TOOLS, formerly known as China Henan New Materials Research Institute, has exclusive advantages in cubic boron nitride materials. We are self-sufficient from raw materials to cutting tools production, and can provide you the most suitable cutting tool solutions.

If you do not find the information you required or would like to know more details, please contact our technical staff.

We are a CBN insert manufacturer with 15 years of experience in tool related business.

Please contact us directly. We will reply to you as soon as possible!
