Product Description

Brief Introduction of DNGA Brazed PCBN Insert

• DNGA brazed pcbn inserts are 55 degree diamond inserts for hard turning ferrous metals of cast iron and hardened steel, the edge of the cbn inserts is made of polycrystalline cubic boron nitride, the indexable inserts with cbn tips are Precision cutting tool, welded from top to bottom, has 4 cutting edges, which is more economical and efficient than ordinary welded CBN inserts.

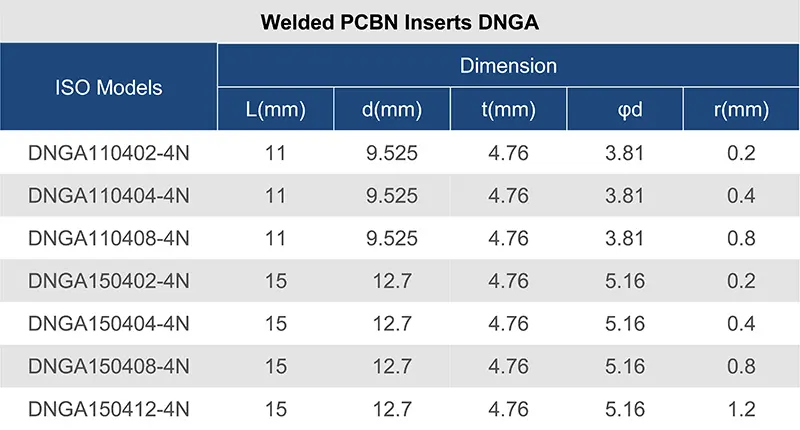

• Common models of DNGA brazed PCBN inserts are DNGA1104, DNGA1504, and common nose radius are 02, 04, 08 and 12.  Chamfers can be S01020, S02020, S01025, etc. Nose radius and chamfers can be customized according to customer needs.

• Processing application of brazed PCBN insert DNGA

  PCBN tool is mainly used in various hardened steel, quenched and tempered steel, tool steel, die steel, bearing steel (HRC45-70) and other quenched steels, as well as gray cast iron, white cast iron, etc.

• DNGA brazed PCBN inserts are commonly used for cnc finishing and semi-finishing workpieces such as rollers, bearings, pumps, automobile brake discs, and aircraft jet engines.

SCBN TOOLS, formerly known as China Henan New Materials Research Institute, has exclusive advantages in cubic boron nitride materials. We are self-sufficient from raw materials to cutting tools production, and can provide you the most suitable cutting tool solutions.

If you do not find the information you required or would like to know more details, please contact our technical staff.

We are a CBN insert manufacturer with 15 years of experience in tool related business.

Please contact us directly. We will reply to you as soon as possible!
