SNGA/SNMG Brazed PCBN Inserts

SNGA/SNMG Brazed PCBN Inserts

Brief Introduction of SNGA BrazedPCBN InsertThe SNGA brazedCBN insert is a welded CBN insert after the design and optimization of the overall square SNMN insert. It has 8 tool tips like SNMN. With SNGA, it can use the universal tool holder same with carbide inserts, no need to chan
Send Inquiry

Product Description

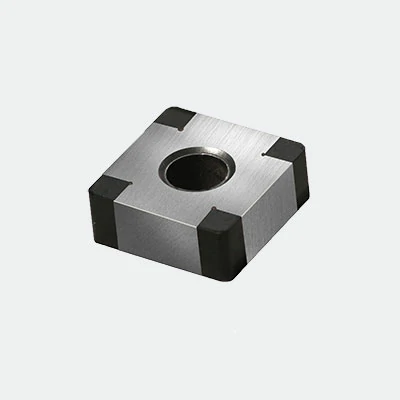

Brief Introduction of SNGA Brazed PCBN Insert


  • The SNGA brazed CBN insert is a welded CBN insert after the design and optimization of the overall square SNMN insert. It has 8 tool tips like SNMN. With SNGA, it can use the universal tool holder same with carbide inserts, no need to change the tool holder, easy and convenient.



SCBN Tools-Welded PCBN Inserts.webp

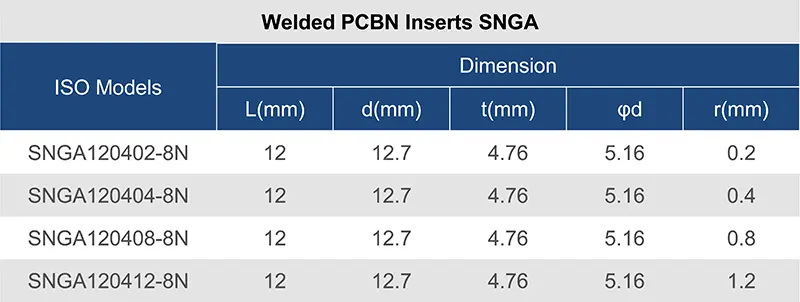

  • The common models of SNGA brazed CBN inserts are SNGA1204, and the common nose radius are 02, 04, 08 and 12.

    Standard chamfers are S02020, S03020, and other non-standard cutting edge sizes are accepted.


SNGA -11.webp


  • SNGA brazed inserts are mainly used in various hardened steel, quenched and tempered steel, tool steel, die steel, bearing steel (HRC45-70); chilled cast iron, high chromium cast iron, nickel-based, cobalt-chromium-molybdenum alloy, cobalt-based high temperature It is suitable for black materials such as alloy (HRC35-70) and difficult-to-machine white cast iron.



  • Processing application: SNGA brazed inserts are mainly used in various hardened steel, quenched and tempered steel, tool steel, die steel, bearing steel (HRC45-70); chilled cast iron, high chromium cast iron, nickel-based, cobalt-chromium-molybdenum alloy, Cobalt-based high temperature alloy (HRC35-70) and difficult-to-machine gray cast iron; and various other difficult-to-machine black materials.



SCBN TOOLS, formerly known as China Henan New Materials Research Institute, has exclusive advantages in cubic boron nitride materials. We are self-sufficient from raw materials to cutting tools production, and can provide you the most suitable cutting tool solutions.

If you do not find the information you required or would like to know more details, please contact our technical staff.

We are a CBN insert manufacturer with 15 years of experience in tool related business.
