VNGA/VNMG Brazed PCBN Inserts

VNGA/VNMG Brazed PCBN Inserts

Brief introduction of VNGAwelding PCBNInsertsVNGAwelded PCBN blade is a 35 degree diamond CBN blade. The tip adopts the form of through welding, which has more tips，more economical than commoncomposite PCBN blade. Cubic boron nitride (CBN), second only to diamond in hardne
Send Inquiry

Product Description

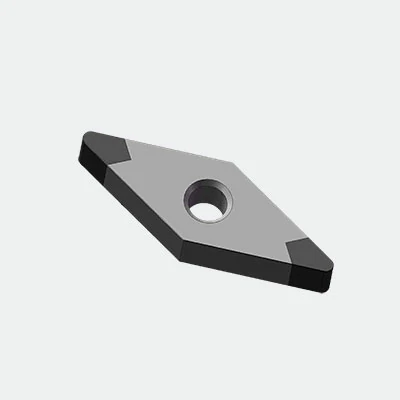

Brief introduction of VNGA welding PCBN Inserts　


  • VNGA welded PCBN blade is a 35 degree diamond CBN blade. The tip adopts the form of through welding, which has more tips，more economical than common composite PCBN blade. Cubic boron nitride (CBN), second only to diamond in hardness and thermal conductivity, has excellent thermal stability and does not oxidize when heated to 1000 ℃ in air. CBN has extremely stable chemical properties for ferrous metals.

SCBN Tools-Welded PCBN Inserts.jpg


  • The common models of VNGA welding inserts are VNGA1604, the arc angles are 02, 04, 08 and 12, the common chamfer are s01020, s02020, s03020, etc., Other arc angles and chamferｓ are subjectｅｄ to customization.




  • VNGA welding CBN blade is made of excellent sheet materials, with exquisite and compact cutter tip, stable processing performance and high durability, and can withstand continuous, intermittent and heavy intermittent machining conditions. VNGA welding PCBN Inserts can be used to process high hardness workpieces after heat treatment, such as hardened bearing steel, carburized steel, nitrided steel, tool steel and die steel. It can be cut intermittently and has long wear life. It is commonly used in semi－finishing and finishing of hardened steel parts such as gears, bearings and cast iron compressors. Iron based powder metallurgy can also be processed.


  • VNGA160412 / 08 / 04 through welded PCBN blade finishing gray cast iron (HT200, HT250, HT300), with good finish, long impact life, high efficiency, linear speed up to 1000m/min and cutting tip consumption of about 0.5mm.



SCBN TOOLS, formerly known as China Henan New Materials Research Institute, has exclusive advantages in cubic boron nitride materials. We are self-sufficient from raw materials to cutting tools production, and can provide you the most suitable cutting tool solutions.

If you do not find the information you required or would like to know more details, please contact our technical staff.

We are a CBN insert manufacturer with 15 years of experience in tool related business.
