WNGA/WNMG Brazed PCBN Inserts

WNGA/WNMG Brazed PCBN Inserts

The Introduction of WNGA Brazed CBN Insert The WNGA series of brazedPCBN inserts is a peach-shaped insert with an optimized design. SCBN TOOLSWNGA brazedCBN inserts have stable processing performance and high durability, and ca
Send Inquiry

Product Description

The Introduction of WNGA Brazed CBN Insert



  • The WNGA series of brazed PCBN inserts is a peach-shaped insert with an optimized design. SCBN TOOLS WNGA brazed CBN inserts have stable processing performance and high durability, and can replace CNC inserts such as similar alloy coated inserts and carbide. The head of this type of W-type PCBN brazed insert is welded through the whole body, and there are a total of 6 cutting edges.



SCBN Tools-Welded PCBN Inserts.webp

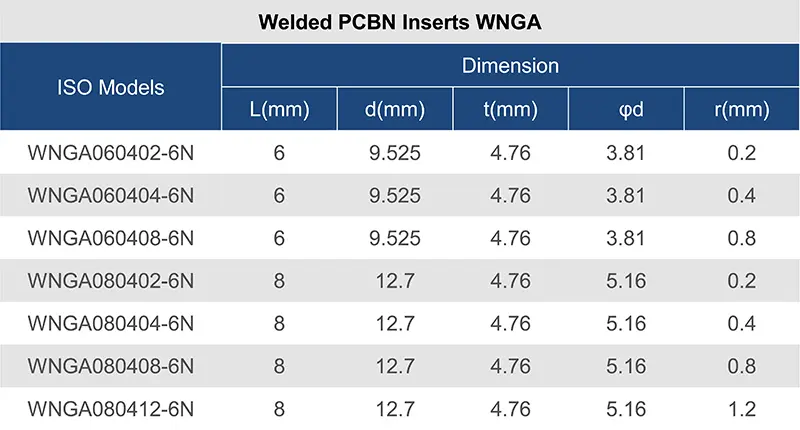

  • The common models of WNGA brazed inserts is WNGA0804, and the commonly used chamfers are S02020 and S03020, and other cutting edge parameters can be customized.


WNGA -11.webp


  • Compared with the previous solid insert, the WNGA brazed insert saves the cost of raw material, and also ensures the versatility with the alloy arbor, which can ensure the accuracy and be more economical and durable. Due to the use of integral welding technology, both sides of the blade can be machined, which increases the number of cutting edges, improves tool utilization, and reduces the cost of tool use for a single workpiece. Commonly used in semi-finishing and finishing processes.



  • Brazed WNGA inserts are often used to process workpieces such as brake discs, brake drums, brake pads, diesel engines, etc. It can be used for rough machining and semi-hard machining of various cast iron, hardened steel, bearing steel, high chromium steel, cemented carbide, powder metallurgy, hardened gear, ball screw and other high hardness metals with Rockwell hardness between (HRC45-90°). Finishing; machining finish can reach Ra0.8, large cutting amount, strong impact resistance, good wear resistance and long service life.



SCBN TOOLS, formerly known as China Henan New Materials Research Institute, has exclusive advantages in cubic boron nitride materials. We are self-sufficient from raw materials to cutting tools production, and can provide you the most suitable cutting tool solutions.

If you do not find the information you required or would like to know more details, please contact our technical staff.

We are a CBN insert manufacturer with 15 years of experience in tool related business.
